CRV-T11，螺纹式插装溢流阀

  特性/Characteristic:

●溢流阀的设定压必须高于引导阀。
●快速反应,响应时间10ms。
●在主阶和引导部分之间的3号口用于遥控和卸载。
●The relief valve setting must always be set higher than the pilot valve
●Fast acting10ms response time
●Third port between main stage and pilot element used for remote control or unloading
注:阀孔型号:Valve Cavity:T11
成型刀具 Cavity Tools:CT11-D.CT11-R
请参阅 Reference P101

  性能表/Specification:

型号 Model	阀系说明 Description	额定流量 Rated Flow	*高压力 Max.pressure	重量 Weight
CRV-T11	透气型 Vented type  引导型 Pilot operated	50/min	315bar	K:0.19Kg L:0.15Kg

  选购指南/How to order:

CRV	T11	L	10	N
系列编号： 溢流阀- 透气型 Series No. Relief Valves- Vented	阀孔型号 Cavity Size	调整方式 Controls L-螺杆调整 Standard Screw Adjustment K-旋钮调整 Hand Knob & Locknob Adj.	压力调整范围 Adjustment Ranges. 10-5 to 100 bar. 20-7 to 210 bar. 30-10 to 315 bar. 1S-3.5 to 100 bar.(option) 2S-5 to 210 bar.(option)	油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton.

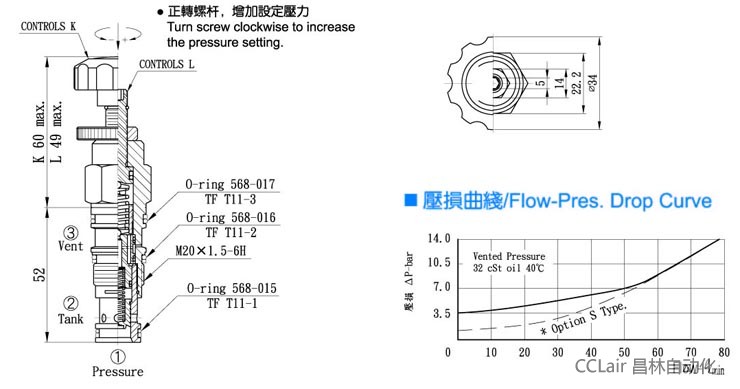

  尺寸图/Dimensions(mm)
