CMQ-062,螺纹式插装溢流阀,价格
特性/Characteristic:
●快速反应,响应时间2ms，低泄漏量（小于5滴/分钟）。
●压力调整不稳定且不是设计为连续负荷使用。
●Fast acting 2ms response time Low leakage(less than 5 drops/min)at reseat
●These cartridges exhibit very rapid response,but pressure regulation can be unstable and the valves are not designed for continuous duty applications
注:阀孔型号:Valve Cavity:C062
成型刀具 Cavity Tools:CTS6-D.CTS6-R
请参阅 Reference P97
性能表 /Specification:
型号
Model |
阀系说明
Description |
额定流量
Rated Flow |
*高压力
Max.pressure |
重量
Weight |
| CMQ-062 |
引导式
Pilot operated
快速反应
Rapid response |
60/min |
315bar |
K:0.16Kg
L:0.13Kg |
选购指南/How to order:
| CRQ |
062 |
L |
10 |
N |
系列编号：
溢流阀-
快速反应型-
Series No.
Relief Valves-
Rapid Response. |
阀孔型号
Cavity Size |
调整方式 Controls
L-螺杆调整
Standard Screw Adjustment
K-旋钮调整
Hand Knob & Locknob Adj. |
压力调整范围
Adjustment Ranges.
10-5 to 100 bar.
20-7 to 210 bar.
30-10 to 315 bar. |
油封材质
Seals:N-丁腈橡胶
Buna N.
V-氟橡胶 Viton. |

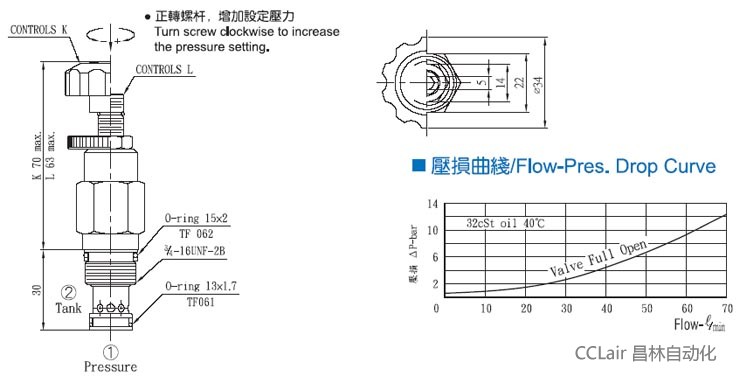

尺寸图/Dimensions(mm)
