CPE-063，
螺纹式插装导开阀，价格
特性/Characteristic:
●液控单向阀是非调节的开关阀仅使用负荷锁固，因此不提供流畅的运动控制。
●允许经一单向阀自由流通由2口到1口，反流封闭直到一正比于负荷压力在3口打开才由1口流到2口。
●Pilot to open check valves are non modulating on/off valves used for load locking only and do not provide smooth motion control.
●They allow free flow from port 2 to 1 then block reverse flow until a pilot pressure directly proportional to the load pressure is sensed at port 3 enabling a pilot a pilot piston to push the poppet off its seat.
性能表/Specification:
型号
Model |
阀系说明
Description |
额定流量
Rated Flow |
*高压力
Max.pressure |
重量
Weight |
| CPE-063 |
提动式
Poppet type
4:5:1导压比
4:5:1pilot ratio |
请参阅压损曲线表 |
315bar(*大值) |
0.63:V:0.12Kg
X:0.12Kg
0.93:V:0.22Kg
X:0.22Kg |
选购指南/How to order:
| CPE |
063 |
X |
0.2 |
N |
系列编号：
导开阀
Series No.
pilot to open
Check Valves |
阀孔型号
Cavity Size |
调整方式 Controls
X-标准型
Standard Type
V-附外部导压口
With externel pilot port |
单向阀开阀压
Cracking pressure
0.2-0.2 bar
2.0-2.5 bar
|
油封材质
Seals:N-丁腈橡胶
Buna N.
V-氟橡胶 Viton. |

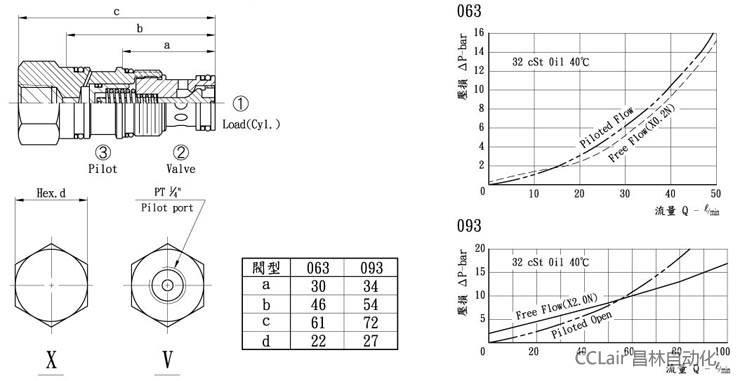

尺寸图/Dimensions(mm)
